Services Lubricant Testing

List of Item and amount of sample that required for testing

Lubricant Oil Test

no Test Item Method amount of sample remark
1 Appearance Visual 50 g
2 Brookfield Viscosity ASTM D2983 100 ml
3 Color ASTM D1500 50 ml test temp > 20 c
4 Copper Corrosion ASTM D130 50 ml
5 Density ASTM D1298 1000 ml
6 Falex Pin & Vee Block ASTM D2670 200 ml
7* Flash Point COC ASTM D92 200 ml
8* Flash Point PMCC ASTM D93 200 ml
9 Foam Tendency,Foam Stability ASTM D892 500 ml
10 Insoluble ASTM D893 100 ml

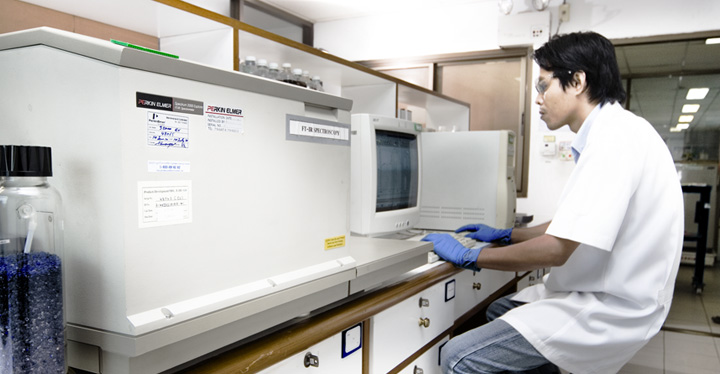

11 IR ASTM E1252 5 ml/g
12 Metal Ca/Zn/P/S ASTM D4294 20 ml for 1 calibration Curve 1000
13 Oxidation IP 48 100 ml
14 pH pH meter 100 ml
15 Pour Point <= -24 C ASTM D97 100 ml
16 Pour Point >-24 C ASTM D97 100 ml

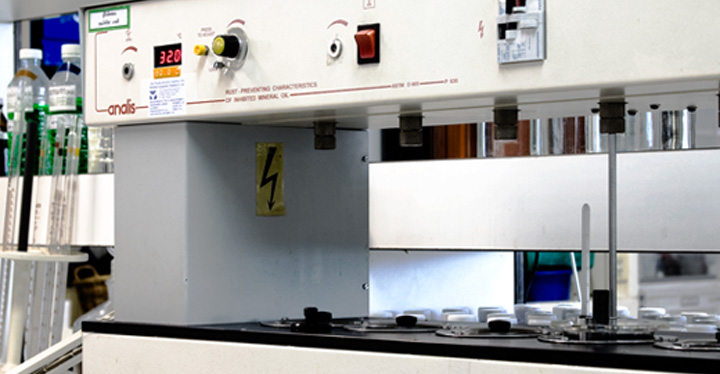

17 Rust Preventing ASTM D665 600 ml
18 Suphate Ash ASTM D874 150 ml

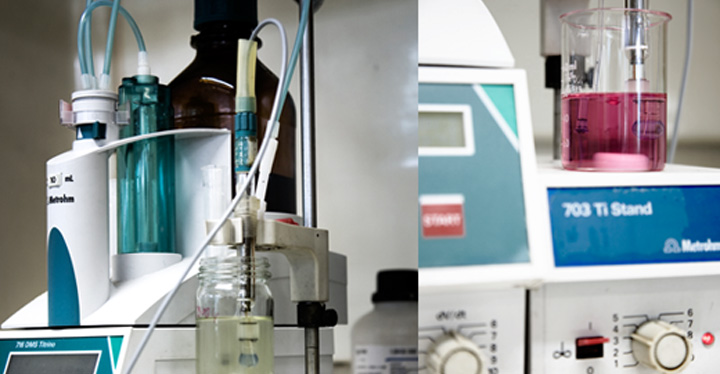

19 Total Acid Number ASTM D974 50 ml
20 Total Base Number ASTM D2896 10 ml

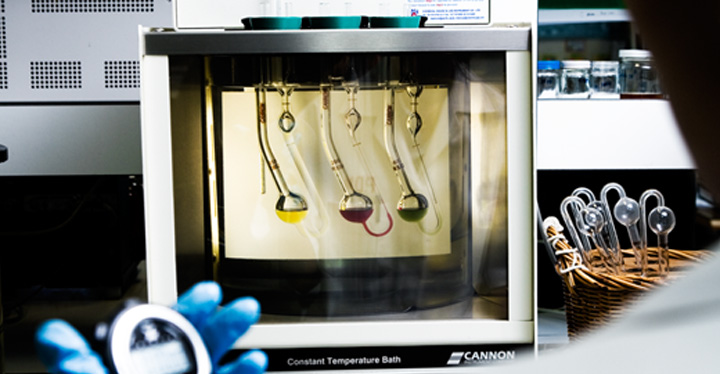

21* Viscosity @ 40/100 C ASTM D445 5 ml
22 Viscosity at Low Temp. (CCS) ASTM D5293 100 ml
23* Viscosity Index ASTM D2270 100 ml
24 Water Content ASTM D95 200 g
25 Water separability ASTM D1401 1000 ml



Lubricant Grease Test

no Test Item Method amount of sample remark
1 Copper corrosion ASTM D4048 200 g
2 Drop melt point ASTM D127 10 g

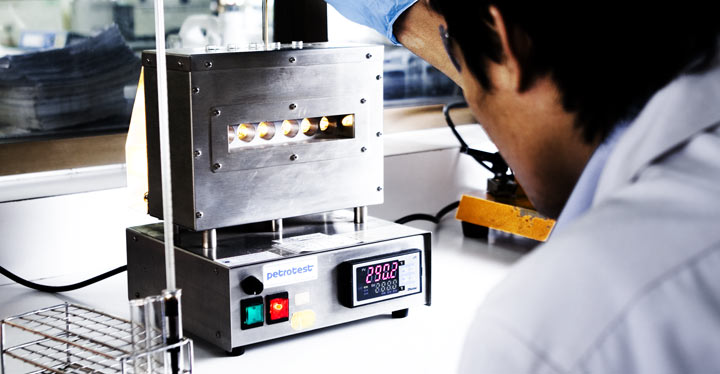

3 Dropping Point ASTM D2265 10 g
4 Four Ball (EP) ASTM D2596 200 ml/g
5 Four Ball (Wear Scar) ASTM D2266 50 ml/g
6 Free Alkali IP 37 20 ml
7 Oil Separate ASTM D1742 300 g
8 Penetration of petrolatum ASTM D937 1000 g
9 Roll Stability ASTM D1831 100 g
10 Softening Point ASTM D36 20 g

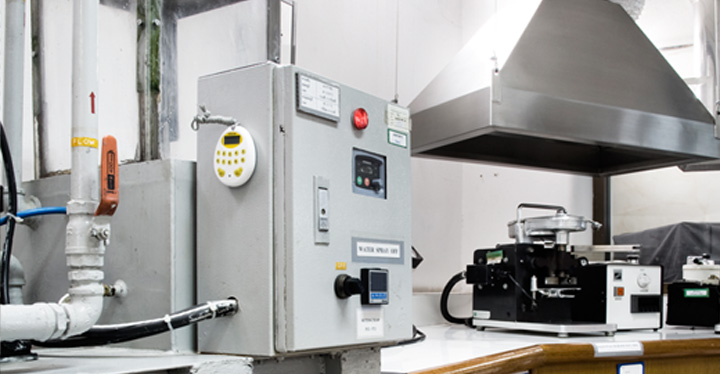

11 Water Spray Off ASTM D4049 50 g

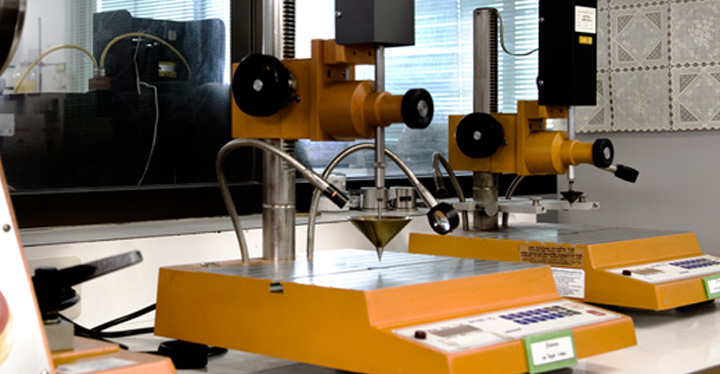

12 UnWorked Penetration ASTM D217 1000 g
13 Worked Penetration ASTM D217 1000 g



* ISO/IEC 17025 Accredited

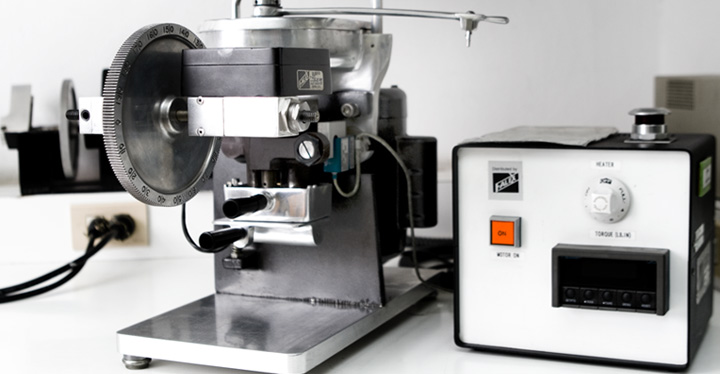

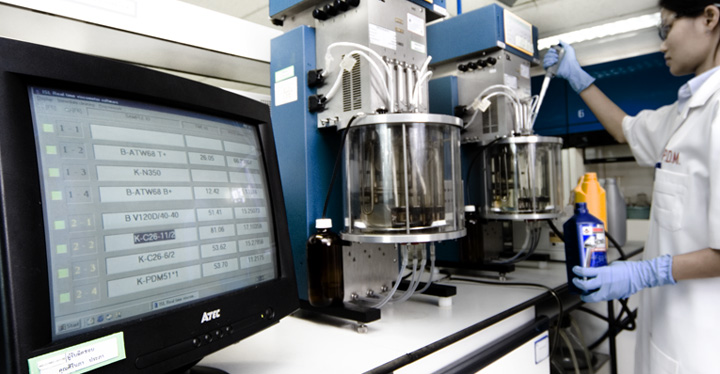

Lube Oil Testing Machine











Grease Testing Machine
